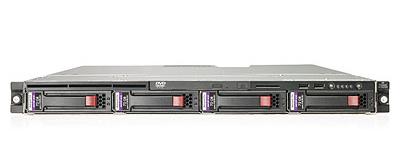

HP ProLiant DL160 G5pСервер начального уровня в форм-факторе Rackmount 1U с поддержкой LFF дисков и возможностью установки до 2 процессоров Intel Xeon Задать вопрос по товару
Отправить запрос менеджеру |
Техническое описание HP ProLiant DL160 G5pСервер HP ProLiant DL160 G5p - оснащён двумя процессорами, благодаря высокой производительности которых Вы получаете оптимальную платформу для решения своих бизнес-задач. Этот сервер идеально подходит для высокопроизводительных вычислений и выполнения задач общего назначения. HP ProLiant DL160 G5p удобен для использования в сетях, используется как файловый сервер и сервер печати, а также для совместного доступа в Интернет
Технические характеристики HP ProLiant DL160 G5p
| Processor & Memory | |
| Processor type | Intel® Xeon® 5400 series |
| Intel® Xeon® 5200 series | |
| Available processors | |
| Quad-Core Intel® Xeon® Processor X5470 | |
| Quad-Core Intel® Xeon® Processor X5482 | |
| Quad-Core Intel® Xeon® Processor X5460 | |
| Quad-Core Intel® Xeon® Processor X5472 | |
| Quad-Core Intel® Xeon® Processor E5462 | |
| Quad-Core Intel® Xeon® Processor L5430 | |
| Quad-Core Intel® Xeon® Processor L5420 | |
| Quad-Core Intel® Xeon® Processor L5410 | |
| Quad-Core Intel® Xeon® Processor E5405 | |
| Dual-Core Intel® Xeon® Processor X5272 | |
| Processor cores | Dual and Quad |
| Processor cache | 12MB Level 2 cache |
| Sockets | 2 |
| Max front side bus | 1600MHz |
| Memory type | PC2-6400 (DDR2-800) |
| High performance memory based on 4GB and 8GB kits. | |
| PC2-5300 (DDR2-667) Fully Buffered DIMMs based on 4GB and 8GB kits. | |
| Low Power Memory available based on 2GB, 4GB, and 8GB kits. | |
| Standard memory | N/A |
| Max memory | 64GB |
| Memory protection | Advanced ECC |
| Storage | |
| Storage type | Hot plug 3.5-inch SAS |
| Hot plug 3.5-inch SATA | |
| Non-hot plug 3.5-inch SATA | |
| Max internal drives | 4 |
| Up to 4: | |
| Non-hot plug 3.5-inch SATA 7.2K 80/160/250/500/750GB; | |
| Hot plug 3.5-inch SATA 7.2K 80/160/250/500/750GB/1TB; | |
| Hot plug 3.5-inch SAS 15K 72/146/300/450/750GB/1TB | |
| Removable media bays | 0 |
| Storage controller | Integrated SATA RAID controller standard; optional SAS HBAs and Smart Array controllers |
| Expansion slots | 1 full-length PCI-E x16 Gen2, Optional PCI-X 133 riser (bridge on riser) |
| Deployment | |
| Form factor | Rack |
| Rack height | 1U |
| Networking | Two integrated NC105i gigabit Ethernet controllers |
| Remote management | Lights-Out 100i |
| Redundant power supply | 1 built-in power supply |
Процессор:
| Артикул | Наименование |
|
495614-B21 |
Quad-Core Intel® Xeon® processor X5482 (3.20 GHz, 120W, 1600MHz FSB) |
|
462465-B21 |
Quad-Core Intel® Xeon® processor X5472 (3.00 GHz, 120W, 1600MHz FSB) |
|
495612-B21 |
Quad-Core Intel® Xeon® processor X5470 (3.33 GHz, 120W, 1333MHz FSB) |
|
446085-B21 |
Quad-Core Intel® Xeon® processor X5460 (3.16 GHz, 120W, 1333MHz FSB) |
|
495616-B21 |
Quad-Core Intel® Xeon® processor L5430 (2.60 GHz, 50W, 1333MHz FSB) |
|
495479-B21 |
Quad-Core Intel® Xeon® processor L5420 (2.50 GHz, 50W, 1333MHz FSB) |
|
448369-B21 |
Quad-Core Intel® Xeon® processor L5410 (2.33 GHz, 50W, 1333MHz Front Side Bus) |
|
448365-B21 |
Quad-Core Intel® Xeon® processor E5472 (3.00 GHz, 80W, 1600MHz FSB) |
|
463076-B21 |
Quad-Core Intel® Xeon® processor E5462 (2.80 GHz, 80W, 1600MHz FSB) |
|
446079-B21 |
Quad-Core Intel® Xeon® processor E5430 (2.66 GHz, 80W, 1333MHz FSB) |
|
446077-B21 |
Quad-Core Intel® Xeon® processor E5405 (2.00 GHz, 80W, 1333MHz FSB) |
|
448371-B21 |
Dual-Core Intel® Xeon® processor X5272 (3.40 GHz, 80W, 1600MHz FSB) |
Память:
| Артикул | Наименование |
|
397413-B21 |
4 GB FBD PC2-5300 2 x 2 GB Kit |
|
397415-B21 |
8 GB FBD PC2-5300 2 x 4 GB Kit |
|
484060-B21 |
4 GB FBD PC2-6400 2 x 2 GB Dual Rank Kit |
|
484062-B21 |
8 GB FBD PC2-6400 2 x 4 GB Dual Rank Kit |
|
413015-B21 |
16 GB FBD PC2-5300 2 x 8 GB Dual Rank Kit |
|
461826-B21 |
2 GB FBD PC2-5300 2 x 1 GB Low Power Kit |
|
461828-B21 |
4 GB FBD PC2-5300 2 x 2 GB Low Power Kit |
|
466440-B21 |
8 GB FBD PC2-5300 2 x 4 GB Low Power Kit |
Контроллеры и опции:
| Артикул | Наименование |
|
449176-B21 |
HP SC40Ge 4 Internal PCIe SAS RAID Full Height HBA, FIO |
|
347786-B21 |
HP 8 Internal Port SAS HBA with RAID |
|
405132-B21 |
HP Smart Array P400/256 Controller |
|
411064-B21 |
HP Smart Array P400/512 Controller with BBWC |
|
381513-B21 |
HP Smart Array P800/512 BBWC Controller |
|
405148-B21 |
HP Smart Array P-Series 512MB BBWC Kit |
|
435129-B21 |
HP Smart Array E500/256MB Controller (Standard RAID 0,1, 1+0) |
|
383280-B21 |
256 MB Battery-backed write cache upgrade for RAID 5 support |
|
411508-B21 |
HP Smart Array E200/128 BBWC Controller |
Жесткие диски:
| Артикул | Наименование |
|
462595-B21 |
HP 750GB 3G SATA 7.2K NHP 3.5" MDL HDD |
|
458941-B21 |
HP 500GB 3G SATA 7.2K NHP 3.5" MDL HDD |
|
458939-B21 |
HP 250GB 3G SATA 7.2K NHP 3.5" MDL HDD |
|
458947-B21 |
HP 160GB 3G SATA 7.2K NHP 3.5" ETY HDD |
|
454146-B21 |
HP 1TB 3G SATA 7.2K 3.5" MDL HDD |
|
458930-B21 |
HP 750GB 3G SATA 7.2K 3.5" MDL HDD |
|
458928-B21 |
HP 750GB 3G SATA 7.2K 3.5" MDL HDD |
|
458926-B21 |
HP 250GB 3G SATA 7.2K 3.5" MDL HDD |
|
458945-B21 |
HP 160GB 3G SATA 7.2K 3.5" ETY HDD |
|
461137-B21 |
HP 1TB 7.2K 3.5" DP SAS MDL HDD |
|
461135-B21 |
HP 750GB 7.2K 3.5" DP SAS MDL HDD |
|
454232-B21 |
HP 450GB 3G 15K 3.5" DP SAS ENT HDD |
|
459508-B21 |
HP 400GB 3G 10K 3.5" DP SAS ENT HDD |
|
431944-B21 |
HP 300GB 3G SAS 15K 3.5" SP HDD |
|
416127-B21 |
HP 300GB 3G SAS 15K 3.5" DP HDD |
|
375872-B21 |
HP 146GB 3G SAS 15K 3.5" SP HDD |
|
384854-B21 |
HP 146GB 3G SAS 15K 3.5" DP HDD |
|
375870-B21 |
HP 72GB 3G SAS 15K 3.5" SP HDD |
|
384852-B21 |
HP 72GB 3G SAS 15K 3.5" DP HDD |
Сервис и поддержка:
| Артикул | Наименование |
|
U9509E |
13-Hour x 5-Day Coverage, 3 Years, Electronic |
|
U9510E |
24-Hour x 7-Day Coverage, 3 Years, Electronic |
|
U9508E |
9-Hour x 5-Day Coverage, 3 Years, Electronic |
|
U9520E |
Hardware Installation, Electronic |
